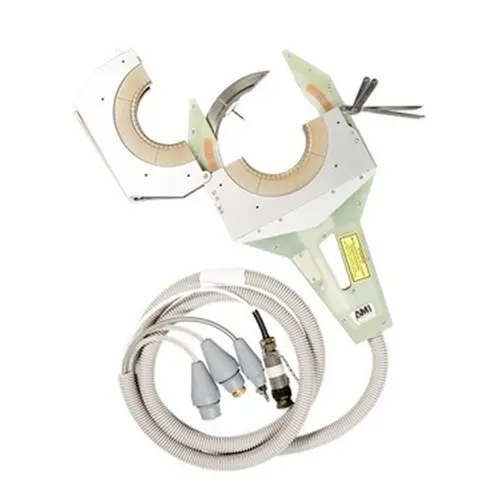

Model 8 Series Weld Heads

Model 8 Series Weld Heads

The Model 8 series orbital weld heads are designed for fusion (TIG) welding of tube, thin-wall pipe and fittings through the range of 0.25 in. (6 mm) to 6.625in. (168 mm) OD (outside diameter) and wall thicknesses up to 0.160in. (4 mm). The narrow width of these heads makes them ideal for fitting-to-fitting welds and other limited-clearance applications.

The Model 8 series weld heads incorporate a two-sided clamping mechanism – precision machined and designed to compensate for significant diameter variances while ensuring positive clamping force and concentricity. The insert sizes accommodate an extensive range of applications and all Model 8 series weld heads are fitted with water-cooling capability – for heavy wall material welding and/or high duty-cycle requirements.

Ordering
M8-2000 WELD HEAD TOP ASSY
13080108-01

M8-4000 WELD HEAD TOP ASSY
13080100-01

M8-6625 WELD HEAD TOP ASSY
13080119-01

Fact Sheet
Request Information
