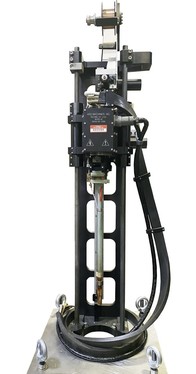

Model 94 ID Spiral Cladding Pipe Weld Head

Model 94 ID Spiral Cladding Pipe Weld Head

The Model 94 is a rugged weld head designed for high production spiral or step ID cladding and groove welding on small diameter pipes, fittings and vessel inlet/outlets, using the GTAW (TIG) process with cold wire feed. The Model 94 is a stable, precise and repeatable platform for manipulating many different torches for welding and cladding operations.

The Model 94 uses accessories to accurately position the weld head in axial alignment with the part to be clad. A manual travel clutch allows fast insertion and extraction of the torch and axial readout gives precise torch location. The use of commutators in the M94 allows continuous torch rotation. Cables are stationary. The M94 is self-supporting on the work piece and can operate in any position.

Ordering
M94-415 WELD HEAD TOP ASSY
13940106-01

Fact Sheet
